| Teknik Özellikler | |
| Brand | ThinkPad |
| Video Ports | 2 x DisplayPort 1.2 |
| 1 x HDMI 1.4 |
| 1 x DVI-D |
| 1 x VGA |
| USB Ports | 3 x USB 3.0 |
| 3 x USB 2.0 (1 always-on) |
| Audio Ports | 1 x 3.5 mm Stereo/Mic Combo Port |
| Max Number of External Monitors | 3 |
| Maximum Resolution/Refresh Rate | DisplayPort 1 or HDMI: 3840 x 2160 30 Hz |
| DisplayPort 2: 3840 x 2160 30 Hz or DVI: 1920 x 1200 60 Hz |
| VGA: 1920 x 1200 60Hz |
| |
| "Maximum resolution" refers to what can be supported by the dock. Actual resolution will vary by laptop. |
| Charging Port | ThinkPad Slim-tip Port |
| Input Power | 90 W |
| Power Delivery | Yes |
| Output Power | 65 W |
| Power Button | Yes |
| Power Plug | Shuko/European Standard Plug Type C |
| Agency Approvals | AS/NZS S-DOC, BSMI, CB, CE, EU DOC, FCC, GOST, KCC, NOM, sDOC, SEPRO, VCCI |
| Supported OS | Windows 10, Windows 8.1, Windows 8, Windows 7 |
| Hardware Requirements | ThinkPad Bottom Docking Connector |
| Product Weight | 0.92 kg (2.03 lbs) |

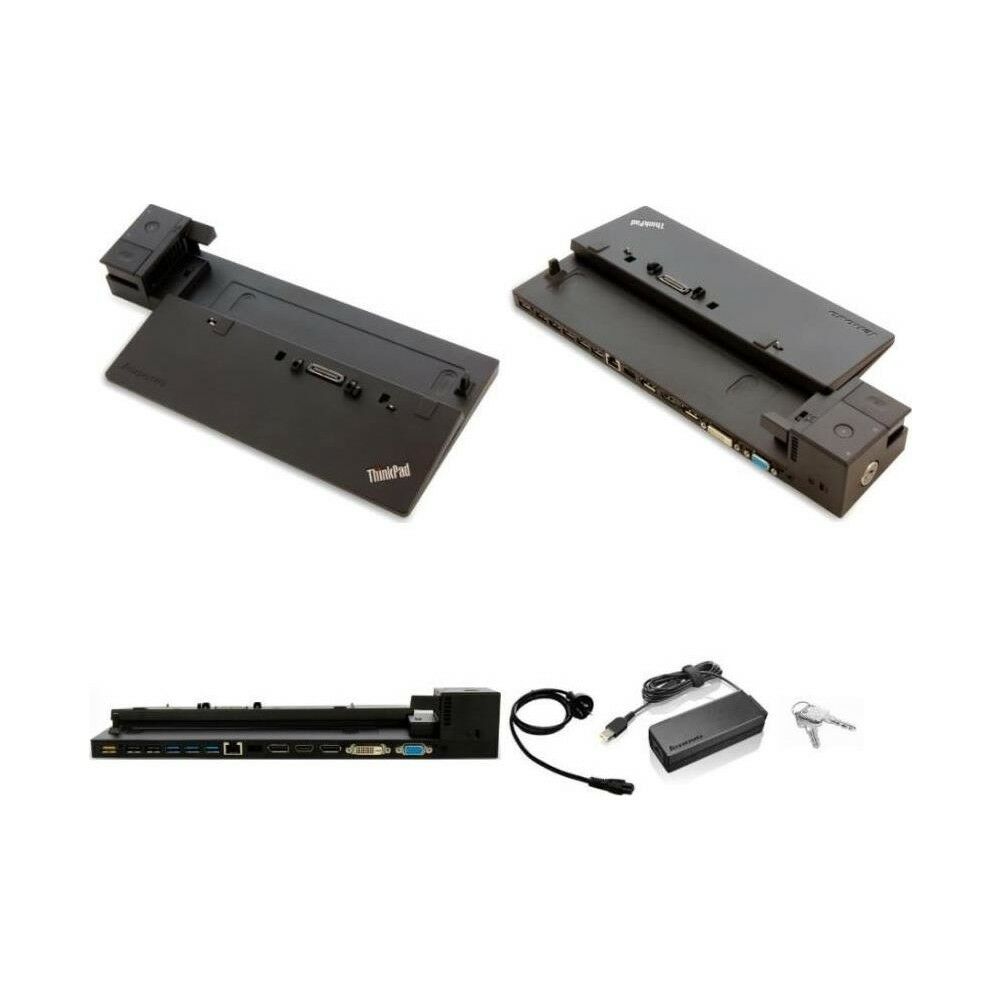

| Shipment Group | ThinkPad Ultra Dock 90 W |
| Two Security Keys |
| ThinkPad Slim-tip 90 W AC adapter |
| Power cord |
| Product information, safety and warranty poster |
| Minimum Operating Temperature | 5 degrees Celsius (41 degrees Fahrenheit) |
| Maximum Operating Temperature | 43 degrees Celsius (109 degrees Fahrenheit) |
| Warranty Period | 1 Year |
| Warranty Type | Customer Replaceable Unit (CRU) |
| UPC | 887770918335 |
| EAN | 887770918335 |
| Uyumlu Modeller | |
| Description | Model kodu aşağıdaki şekilde başlayanlar |
| ThinkPad L Series-L440 | 20AS |
| ThinkPad L Series-L450 | 20DS , 20DT |
| ThinkPad L Series-L460 | 20FU , 20FV |
| ThinkPad L Series-L470 | 20J4 , 20J5 , 20JU , 20JV |
| ThinkPad L Series-L540 | 20AU |
| ThinkPad L Series-L560 | 20F1 , 20F2 |
| ThinkPad L Series-L570 | 20J8 , 20J9 , 20JQ , 20JR |
| ThinkPad L-L440 | 20AT |
| ThinkPad L-L540 | 20AV |
| ThinkPad P Series-P50s | 20FK , 20FL |
| ThinkPad P Series-P51s | 20HB , 20HC , 20JY , 20K0 |
| ThinkPad T Series (Relationship Only)-T440 | 20B7 |
| ThinkPad T Series (Relationship Only)-T440p | 20AW |
| ThinkPad T Series (Relationship Only)-T440s | 20AR |
| ThinkPad T Series (Relationship Only)-T450 | 20BU , 20DJ |
| ThinkPad T Series (Relationship Only)-T450s | 20BW |
| ThinkPad T Series (Relationship Only)-T540p | 20BF |
| ThinkPad T Series (Relationship Only)-T550 | 20CJ |
| ThinkPad T Series-T440 | 20B6 |
| ThinkPad T Series-T440p | 20AN |
| ThinkPad T Series-T440s | 20AQ |
| ThinkPad T Series-T450 | 20BV |
| ThinkPad T Series-T450s | 20BX |
| ThinkPad T Series-T460 | 20FM , 20FN |
| ThinkPad T Series-T460p | 20FW , 20FX |
| ThinkPad T Series-T460s | 20F9 , 20FA |
| ThinkPad T Series-T470 | 20HD , 20HE , 20JM , 20JN |
| ThinkPad T Series-T470p | 20J6 , 20J7 |
| ThinkPad T Series-T470s | 20HF , 20HG , 20JS , 20JT |
| ThinkPad T Series-T540p | 20BE |
| ThinkPad T Series-T550 | 20CK |
| ThinkPad T Series-T560 | 20FH , 20FJ |
| ThinkPad T Series-T570 | 20H9 , 20HA , 20JW , 20JX |
| ThinkPad T Series-TP25 | 20K7 |
| ThinkPad W Series-ThinkPad W550s | 200 , 2000 |
| ThinkPad X Series (Relationship Only)-X240 | 20AMx |
| ThinkPad X Series (Relationship Only)-X250 | 20CL |
| ThinkPad X Series-ThinkPad A475 | 20KL , 20KM |
| ThinkPad X Series-ThinkPad X270 | 20HM , 20HN |
| ThinkPad X1 Series-X240 | 20AL |
| ThinkPad X1 Series-X250 | 20CM |
| ThinkPad X1 Series-X260 | 20F5 , 20F6 |
| ThinkPad X1 Series-X270 | 20K5 , 20K6 |
